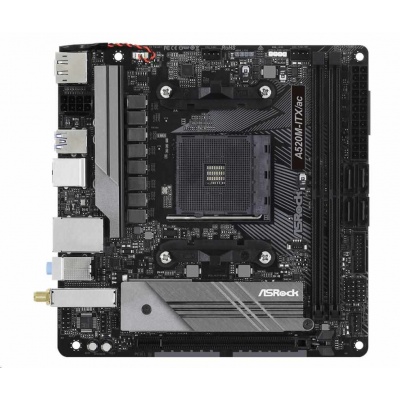

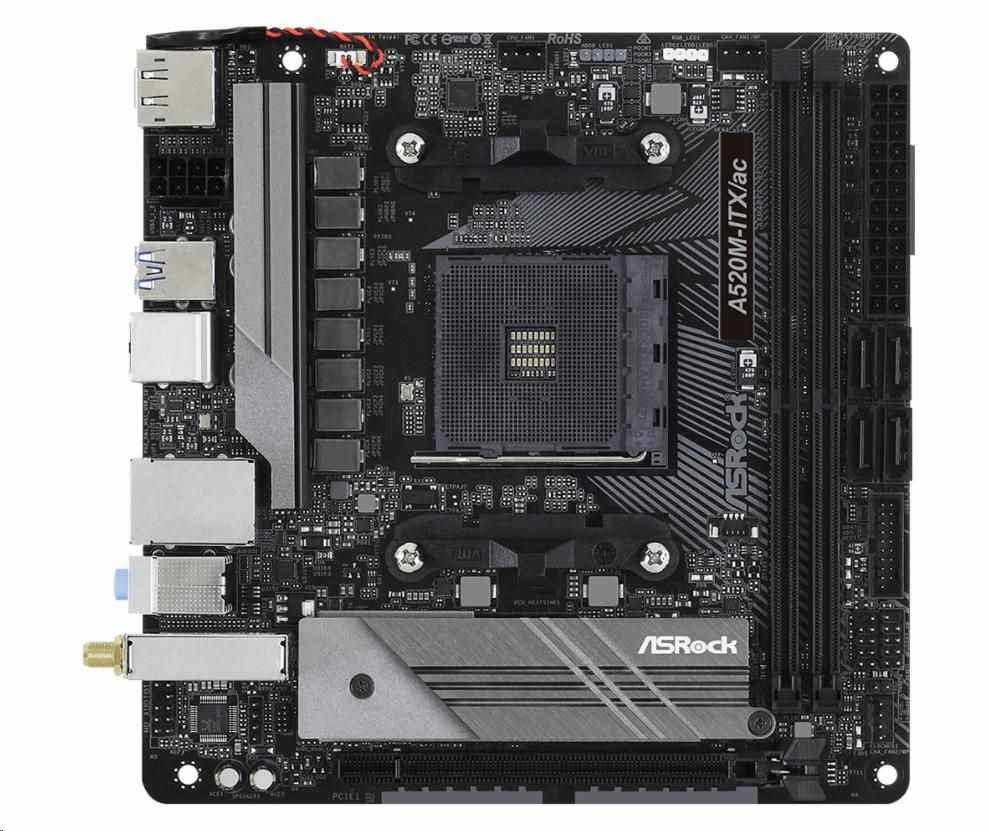

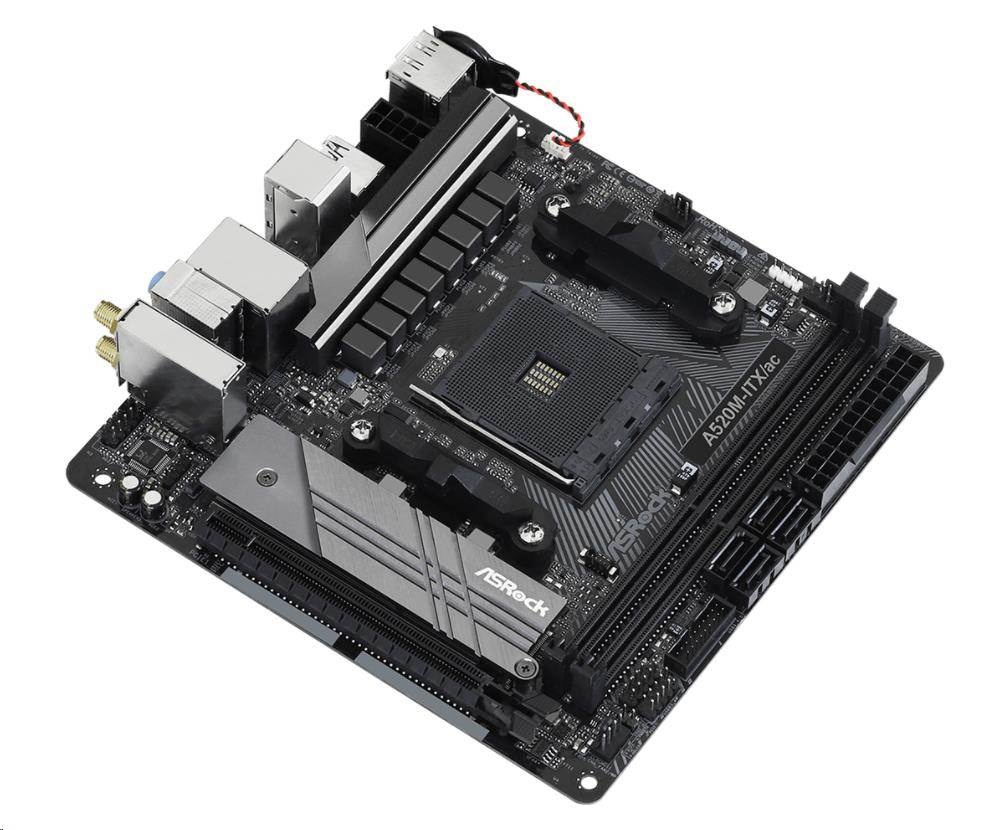

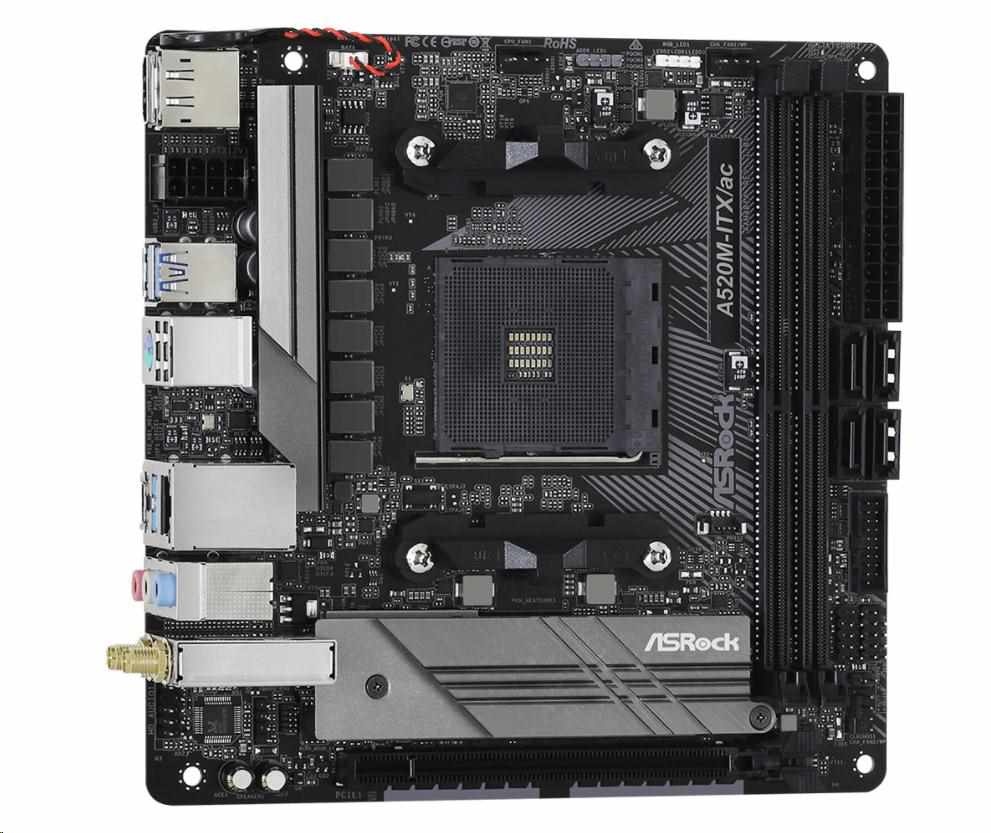

ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP

Přidat do oblíbenýchASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP
Formát základní desky:Mini-ITX; Chipset:AMD A520, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:0; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:Wi-Fi, WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:4; USB 3:6.

Kód produktu380620
Part numberA520M-ITX/AC
EAN produktu4710483932045

Záruka:24 Měsíc(ů)
Výrobce:ASRock
Skladová dostupnost:Skladem
Vaše cena bez DPH
2285.12 Kč
Vaše cena včetně DPH
2765 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

A520M-ITX/ac

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16
  • Graphics Output: DisplayPort, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
  • Realtek Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2


TECHNICAL SPECIFICATIONS

Unique Feature ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
Intel® 802.11ac WiFi
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)*
- Digi Power design
- 8 Power Phase design

*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

Chipset - AMD A520
Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots
Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

*AMD Ryzen series CPUs (Matisse) supports PCIe riser cards to extend x8/x8 slots
Supports NVMe SSD as boot disks

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN - Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 + High speed class II
Connector

- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection

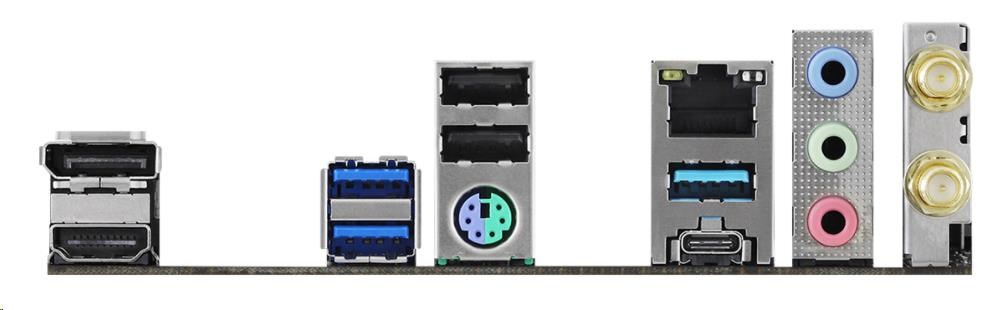

Rear panel I/O - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment

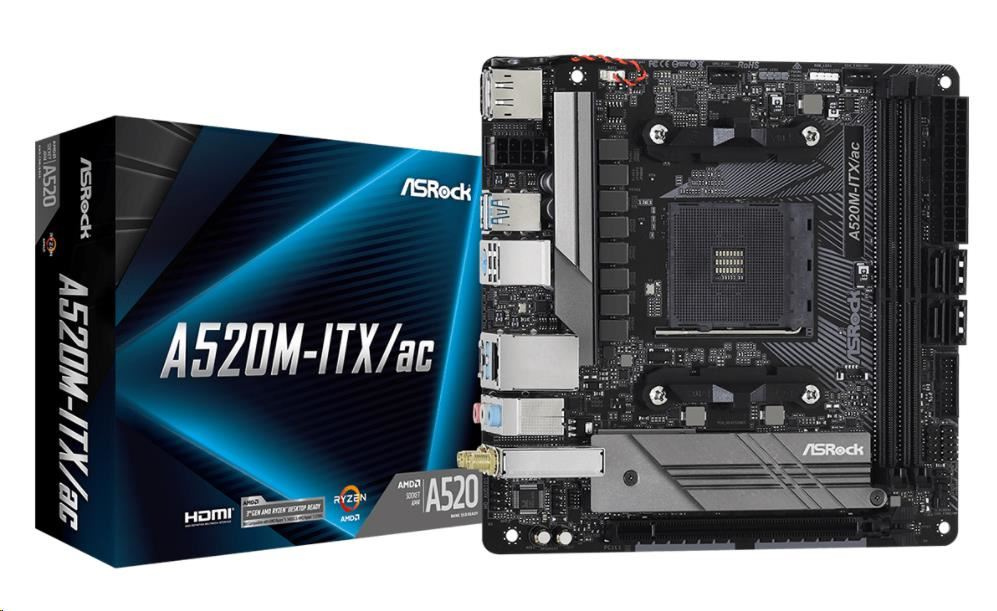

Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
Hardware Monitor - Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System - Microsoft® Windows® 10 64-bit
Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
Technologie paměti RAM: DDR4
Socket (patice): Socket AM4
Chipset: AMD
Chipset: AMD A520
PCI Express x16: 1
Podpora RAID: 1
Podpora RAID: 10
COM port: Ne
LPT port: Ne
Formát základní desky: Mini-ITX
3.5mm Jack: Ano
Bezdrátové připojení: Wi-Fi
Bezdrátové připojení: WiFi + Bluetooth
Pro procesory: AMD
Počet paměťových slotů: 2
DisplayPort: 1
TPM: Ne
USB 2: 4
USB 3: 6
PCI: 0
M.2 slot: 1
SATA 3: 4
VGA: 0
DVI: 0
HDMI: 1
Led Header: Ano
PCI Express x1: 0
USB C: 1
LAN: 1Gbit/s
