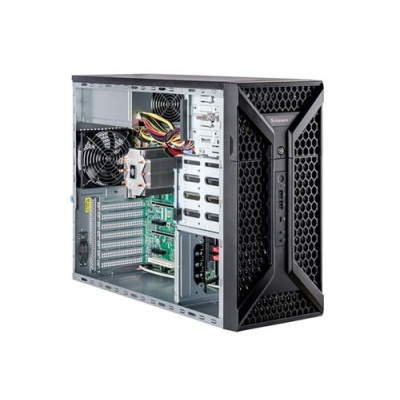

SUPERMICRO SuperWorkstation SYS-531A-IL

Přidat do oblíbenýchSUPERMICRO SuperWorkstation SYS-531A-IL
Supports 12th/13th Gen. Intel® Core™ i Processors; Dual LAN ports, 1 GbE and 2.5 GbE; 12cm PWM quiet exhaust fan and optional 12cm front intake fan; 668W 80PLUS Platinum Power Supply;.

Kód produktu205162
Part numberSYS-531A-IL

Záruka:12 Měsíc(ů)
Výrobce:Supermicro
Skladová dostupnost:Na dotaz
Vaše cena bez DPH
23951.24 Kč
Vaše cena včetně DPH
28981 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

SuperWorkstation SYS-531A-IL

Specifikace

Form FactorMid-Tower Rackmount
Enclosure: 193 x 424 x 536mm (7.6" x 16.7" x 21.1")
Package: 543 x 304 x 642mm (21.38" x 11.97" x 25.28")
ProcessorSingle LGA-1700
14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors
Up to 24C/32T; Up to 36MB Cache
GPUMax GPU Count: Up to 1 double-width GPU(s)
Supported GPU: NVIDIA PCIe: RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000

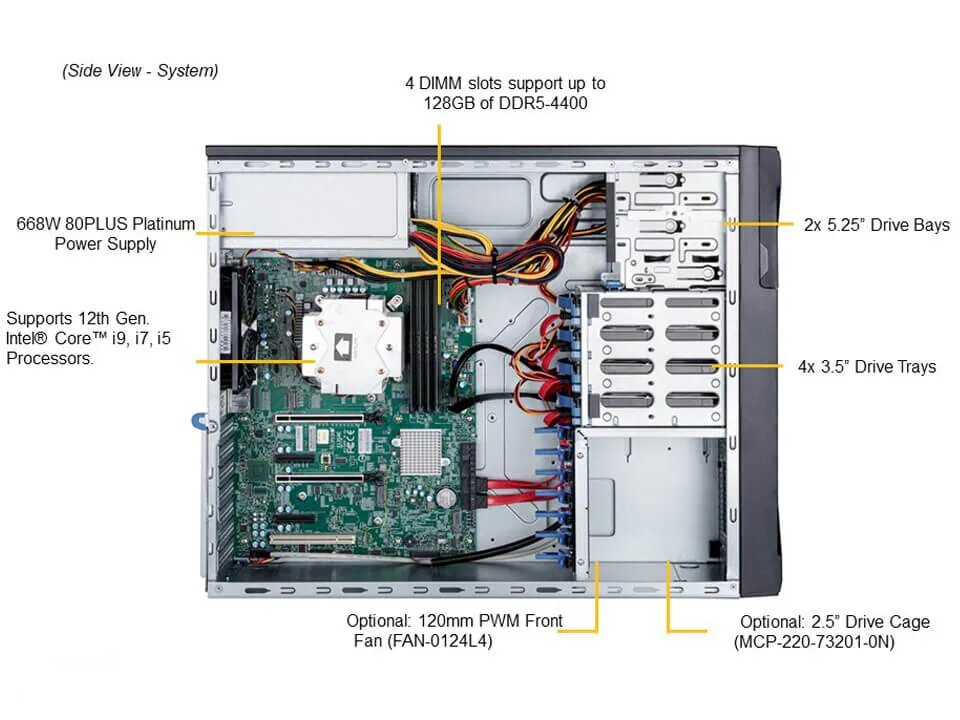

System MemorySlot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 4400MT/s non-ECC DDR5 UDIMM
Drive Bays ConfigurationDefault: Total 4 bay(s)
4 internal fixed 3.5" SATA drive bay(s)
M.2: 3 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280)
Peripheral Bays: 2 5.25" bay(s)
Expansion Slots Default
2 PCIe 3.0 x4 FHFL slot(s)
2 PCIe 5.0 x8 (in x16) FHFL slot(s)
Option A
2 PCIe 3.0 x4 FHFL slot(s)
1 PCIe 5.0 x16 FHFL slot(s)
On-Board DevicesSATA: SATA (6Gbps)
Chipset: Intel® W680
Network Connectivity: 1 RJ45 1GbE with Intel® I219-LM
1 RJ45 2.5GbE with Intel® I225-V

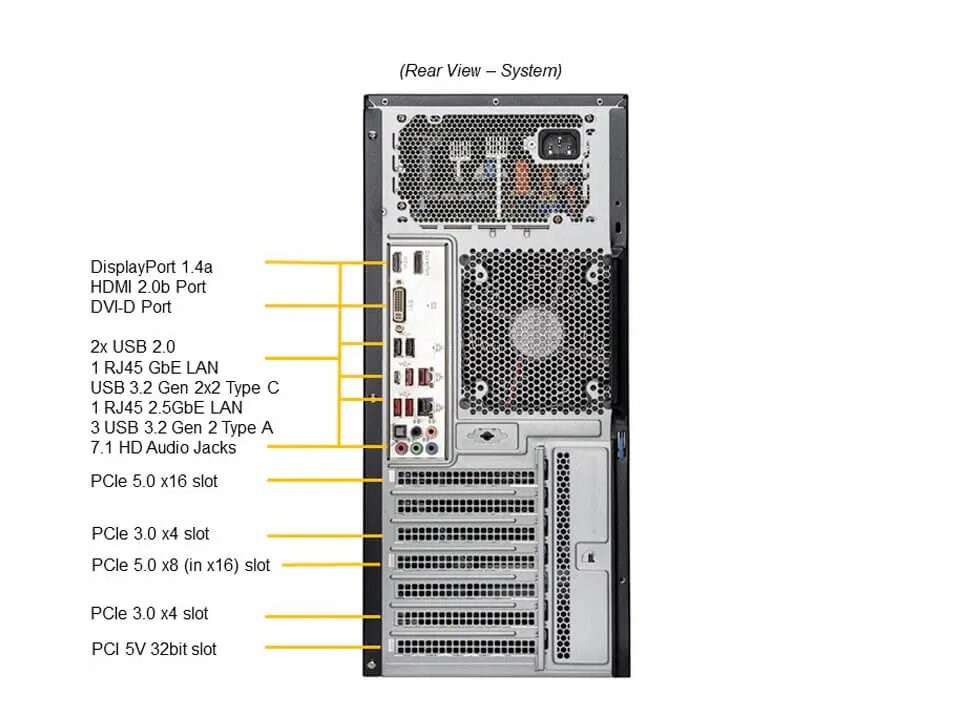

Input / OutputUSB: 2 USB 2.0 Type-A port(s) (rear)
2 USB 3.2 Gen1 Type-A port(s) (front)
1 USB 3.2 Gen2 Type-C port(s) (Rear)
1 USB 3.2 Gen2 Type-C port(s) (Front)
3 USB 3.2 Gen1 Type-A port(s) (Rear)
Video: 1 HDMI 2.0b port(s)
1 DVI-D port(s)
1 DisplayPort 1.4a port(s)
Audio: 7.1 HD Audio
TPM: 1 TPM header
System CoolingFans: 1x 120mm Fan(s)
1x 120mm Fan(s) (optional)
Power Supply668W Platinum Level power supply
PC Health MonitoringVoltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature,
CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Dimensions and WeightWeight: Gross Weight: 30 lbs (13.61 kg)
Net Weight: 28 lbs (12.7 kg)
Available Color: Black
Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
MotherboardX13SAE
ChassisSuperChassis 735D4-668B
.
Počet USB 2.0: 0
